A closer look....

Click on the images for a more detailed view.

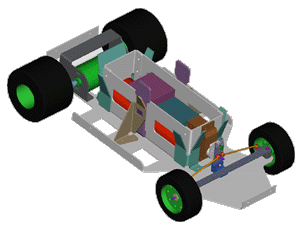

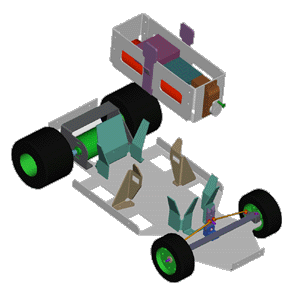

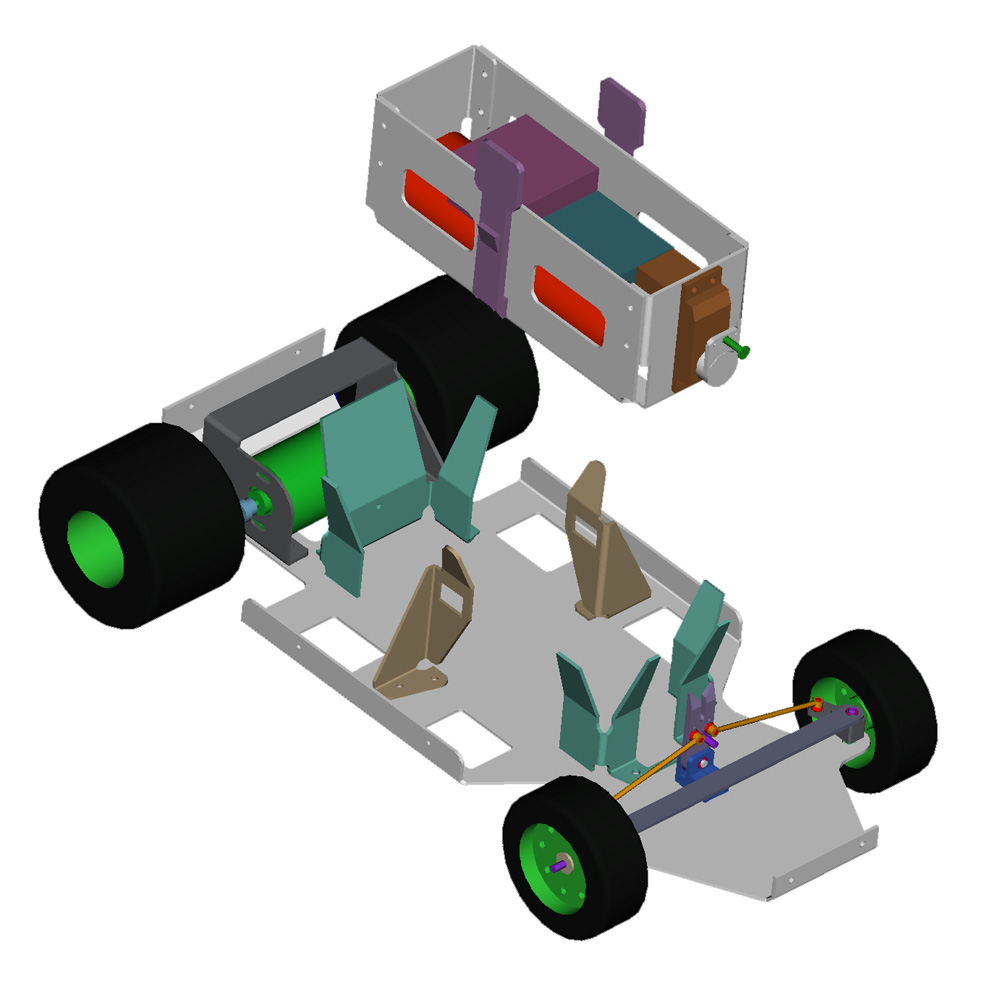

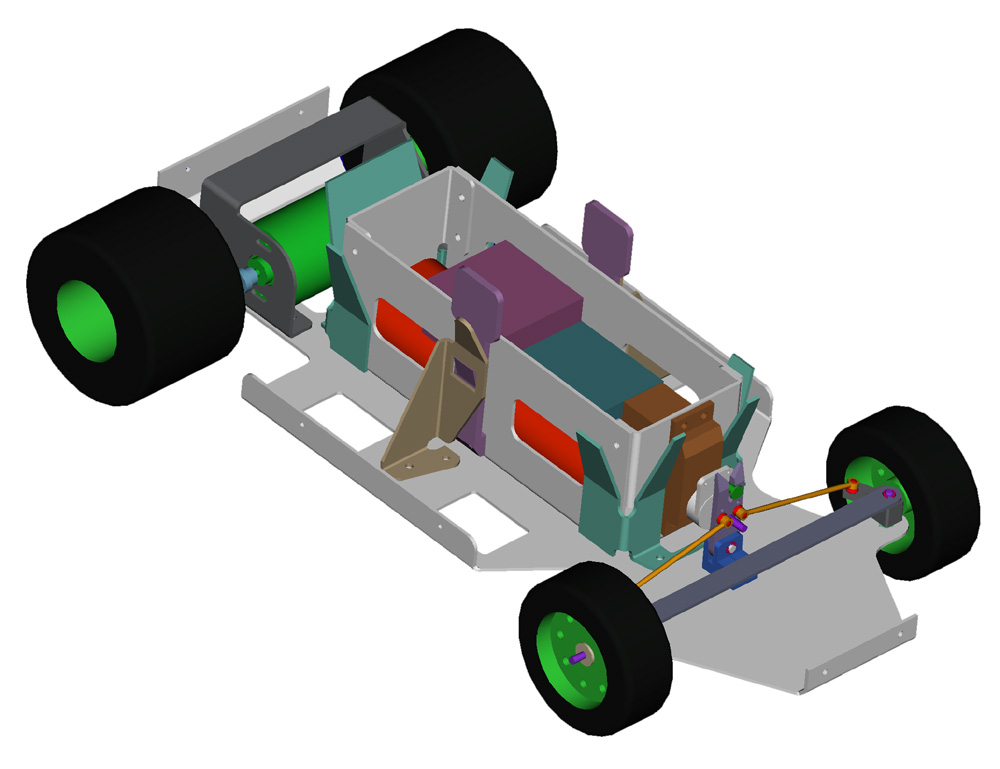

A drawing with the body removed reveals the alignment features of the control box, as well as the steering linkage. The control box can be switched between cars in less than two seconds.

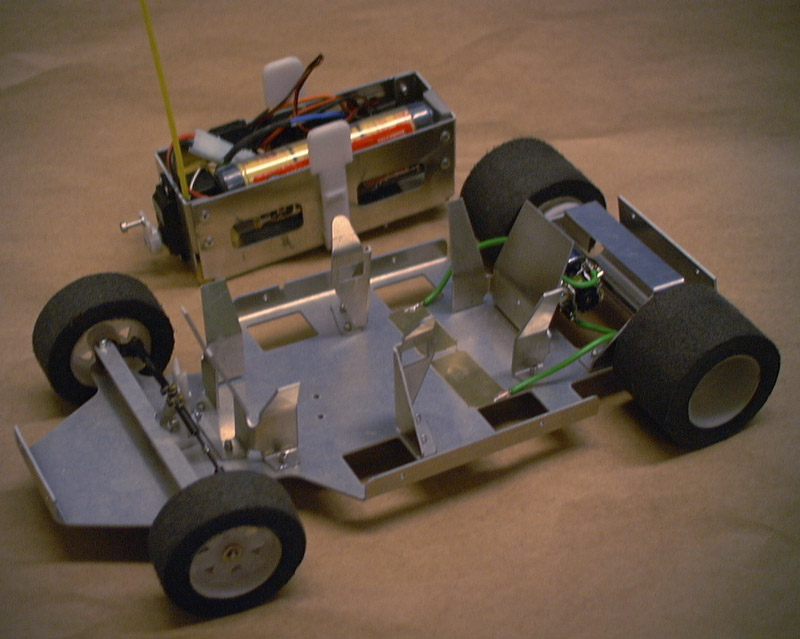

 Finished chassis with control box in the background. Note the contact pads that transfer electric power from the control box to the motor.

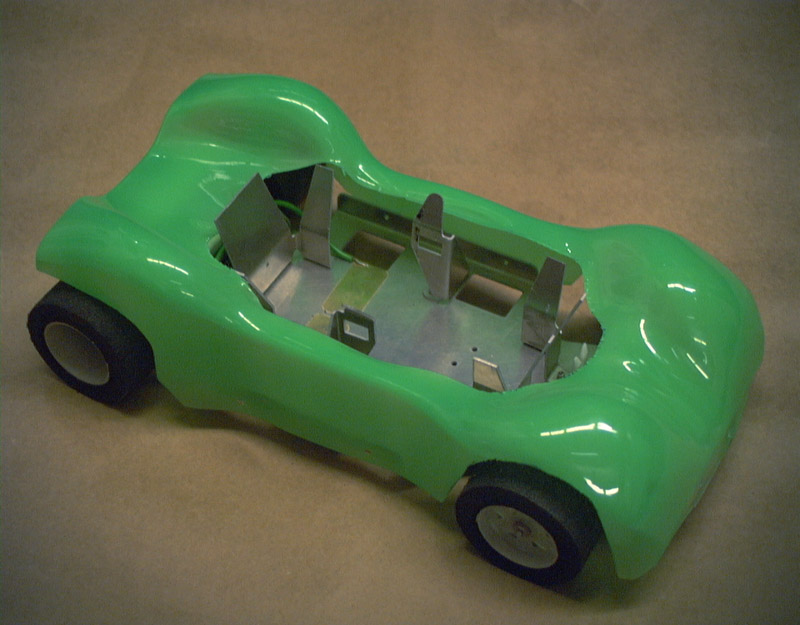

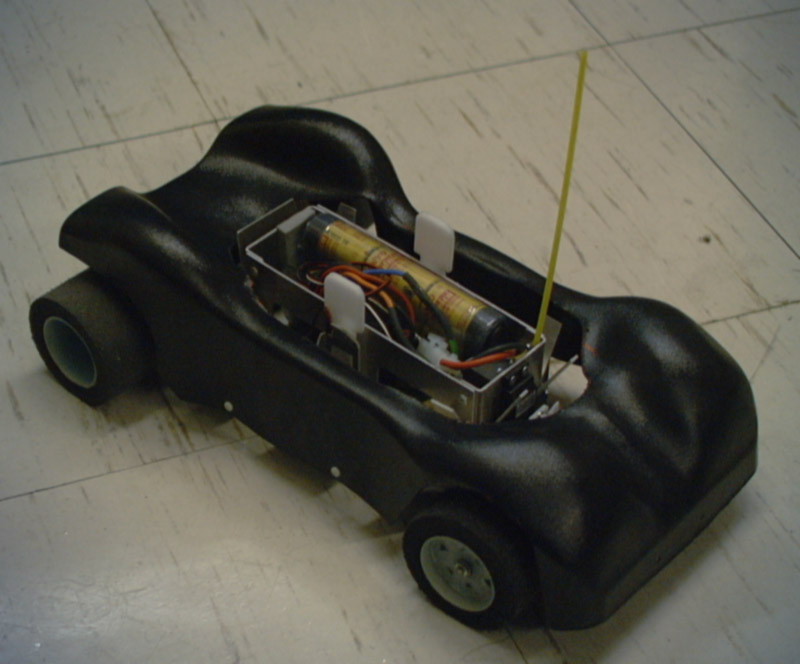

Finished cars with and without the control box

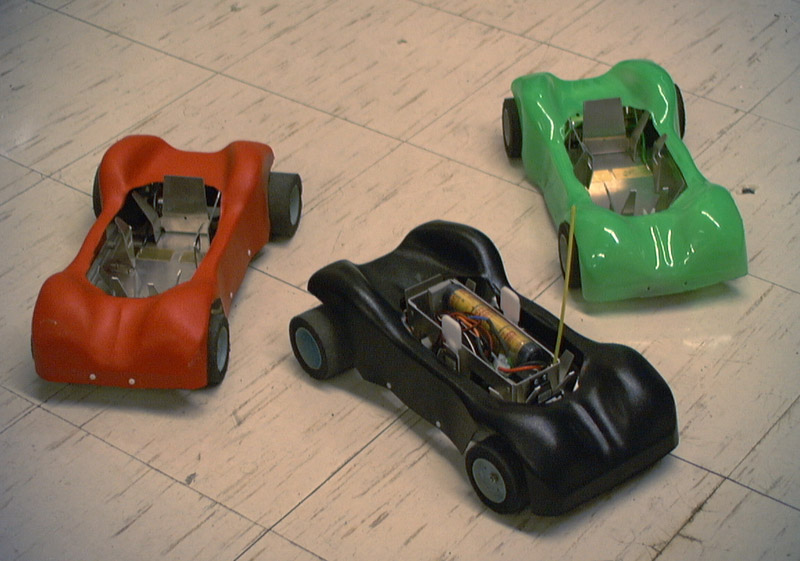

Three of the six cars that we built

PDF formatted mechanical drawings of individual components.

  • Chassis
  • Sheet metal hardware
  • Control Box
  • Steering Coupler
  • Steering Pillow Block
